• Applications:

Suitable for the dry & wet indoor installation with accidental movement and bending in industrial environment, such as machine tool, wooden tool, grinding machine etc.

• Properties:

Water proof & Oil resistance & Coolant resistance & Flame resistance

Working temperature- Fixed: -40°C- +70°C

                                    Moving: -5°C -+70°C

Bending life is more than normal installation cable, but could not working as dray chain cable.

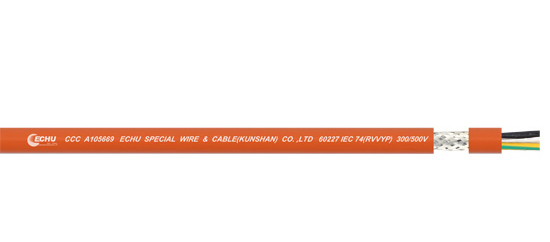

• Structure:

Conductor: Fine oxygen free copper acc to VDE0295 CLASS 5

lnsulation: Special PVC

Colour: ≤0.5mm Colour brown, black, blue, purple, pink, orange;

            ≥0.5mm Black number with white marks, more than 3 cores have yellow and green protect cable.

Shield: Bare or tinned copper.

Sheath: Special PVC with oil resistance

            Black(RAL9005) ; Grey(RAL7001)

Rated voltage: 300/500V

Testing voltage: 2000V

Working temperature- Fixed:-40°C 〜+70°C

                                      Moving:-5°C 〜+70°C

Minimum bending radius-Fixed: 4 * external diameter

                                       Moving: 15 X external diameter
